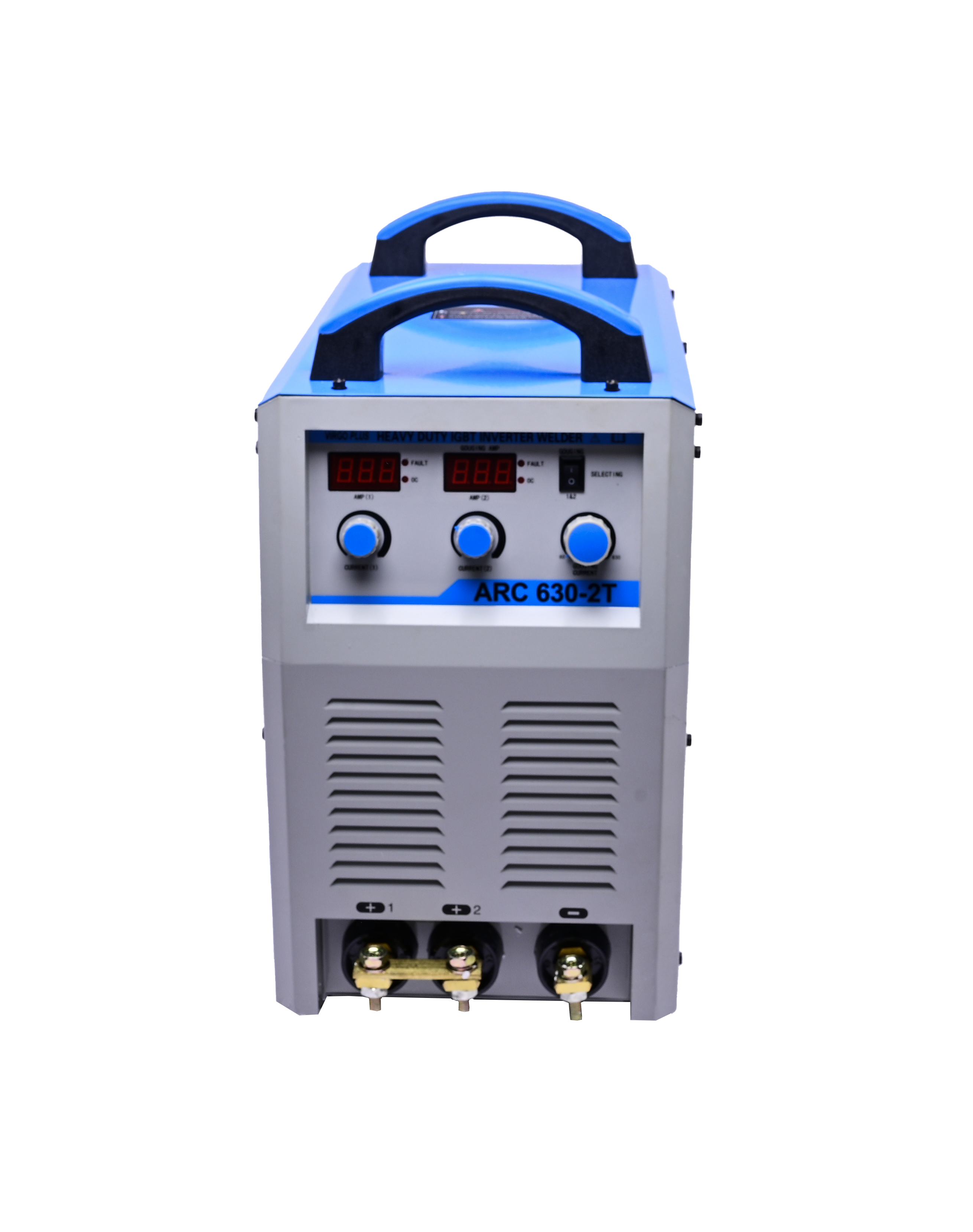

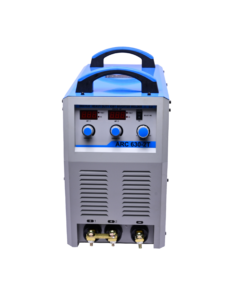

ARC SERIES – ARC 630 – 2T

63,140.00

+ Free Shipping
Model Name ARC 630 – 2T
Input power voltage (V) AC 415V*3P±10%
Frequency (Hz) 50/60
Rated input current (A) 31.5 KVA*2
Input Current 47A*2
No-Load Voltage (V) 75V
Current adjusting range 20-300A*2
Duty cycle (%) 100%@300*2
Efficiency (%) 89%
Power Factor 0.95
Welding electrode size (mm) 4.0 / 5.0 / 6.0
Insulation class F
Case protection degree IP21S
Cooling Method Air Cooling
Weight (kg) 25
Dimensions in mm 730x390x700 mm

ARC SERIES (IGBT) MODULE INVERTER DC MMA WELDER

Product Description

  • Latest IGBT inverter technology, the dynamic response speed is fast, and the output current is strong.
  • Dual digital display of welding current so can be used with dual holder simultaneously.
  • It has protection functions such as voltage anomaly, overheat overload, over current fault, short circuit, etc.
  • It also can be used for gouging application on single holder usage.
  • It is suitable for welding high and low-carbon steel, cast steel, stainless steel, alloy steel, steel bar butt welding and other materials.

Standard Accessories

  • COMES WITH LUG TYPE CONNECTORS

Industry application

  • Civil use light industry
  • Decoration hardware metal processing

1 Year Warranty
