Sale!

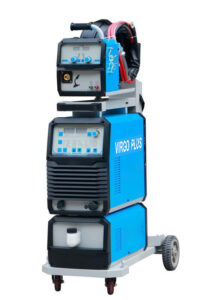

MIG P-SERIES – MIG 500 PULSE

259,000.00

+ Free Shipping
Model Name MIG 500 Pulse
Input power voltage AC 415V*3P±10%
Frequency 50/60Hz
Rated input Capacity 25 KVA
Rated Input Current 38A
Rated Input Voltage 39V
Rated Load Duration Rate 60%
Duty Cycle 100%
Output No-Load Voltage 106
Output Current Range 20-500A
Output Voltage Range 14-50V
Power Factor >0.87
Types of Wire Feeding Push/Push-Pull
Gas Flow 15-20
Cooling Method of Welding Gun Water-Cooled/Air-Cooled
Shell Protection Level IP21S
Wire Feeder 4 ROLL
Insulation Level H
Shape Size 1040x515x1415mm

MIG P-SERIES (IGBT) INVERTER DC PULSE MIG/MAG/MMA WELDER

Product Description

  • The all-in-one digital system, which implements the overfine welding of the droplets.
  • In the special control mode, no splash welding is achieved.
  • With the double pulse function, it can obtain the beautiful appearance of the fish scales.
  • The digital communication interface of the domestic general standard, the realization of the seamless integration with the robot.
  • It has many kinds of safety features including flow, overpressure, undervoltage, heat protection and self protection.
  • It can save up to 100 sets of custom parameter specifications and easy calls.
  • 1 Year Warranty.
