PORTABLE CNC CUTTING MACHINE – P-CNC 1530

₹168,000.00

+ Free Shipping

Model Name	P-CNC 1530
Installation Mode	With combined installation and random movement, without occupying fixed site and directly cutting on steel plates
Cutting Shape	Steel plate with any plane shapes framed by straight lines and arcs
LCD Display Dimension	Monitor: 7 inch, 800 * 480, high definition 16 million colors and high brightness LCD Memory: 64M SDRAM
Program space available for user	256M electronic hard disk CPU frequency: 400MHz
Effective Cutting Size	W1500 * L3000mm (Length can be increased in multiple of 3000mm)
Railway Size	W2100 * 3500mm Chassis: full steel structure completely shielded which defends electromagnetic radiation, interference & static
Flame Cutting Thickness	5-200mm
Plasma Cutting Thickness	0.5-20mm (according to plasma power)
Height Control	Electric Height Control + Arc Voltage Height Control (THC)
Motor and driver	Stepper motor and driver
Cutting Speed	0-4000mm per minute
Drive Mode	Single-side

Cutting Mode	Flame and Plasma
Ignition Device	Auto
File Transmission	USB: USB 1.1 front interface, at least 16GB U disk supportable; Keyboard: PCB keyboard
Cutting Gas	Flame: Oxygen + Acetylene / Propane / Coal gas \| Plasma: Air
Gas Pressure	Max. 0.1 Mpa
Oxygen Pressure	Max. 0.7 Mpa
Cutting Accuracy	0.5mm
Software	FASTCAM
Power Supply Voltage / Frequency	220V / 110V 50HZ 60HZ
Rated Power Supply	200W
Working Temperature	.10°C . 60°C. Relative Humidity from 0.95%

Category: Virgo CNC Plasma Cutting Machine Tag: Portable CNC 1530 - Cutting Machine

Description
Reviews (0)

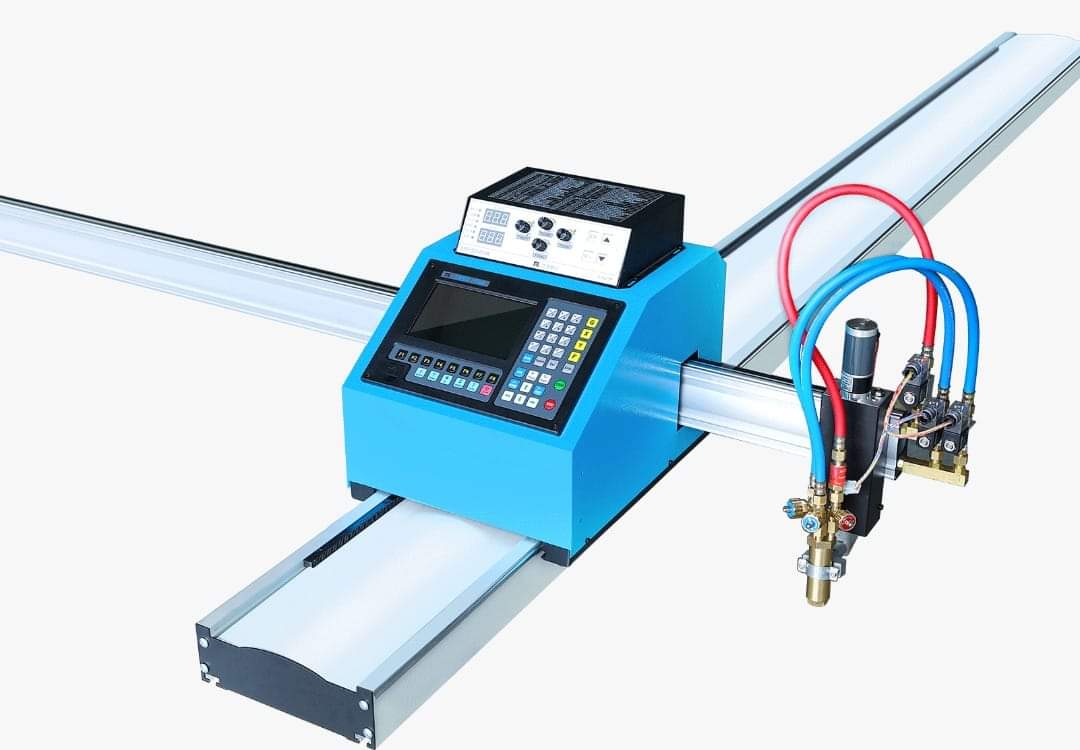

PORTABLE CNC CUTTING MACHINE

Product Description

Portable CNC Cutting system from Virgo Plus offers a very simple solution to precise cutting requirements. The machine can be either used with flame cutting (Oxy-Fuel) torch or it can be coupled with a suitable plasma power source. When coupled with a plasma power source, the machine is equipped with an ARC voltage height controller. The machine has a USB interface through which CNC code can be transferred to the machine. The machine has a standard library for commonly used shapes.

Feature

Simple Design
Easy to install
Easy to use controls
Break point restoration
Automatic break point memory
1 Year Warranty.
